Control method
Phase dimming and 0–10V control are different systems. Match this model to the lamp or driver.

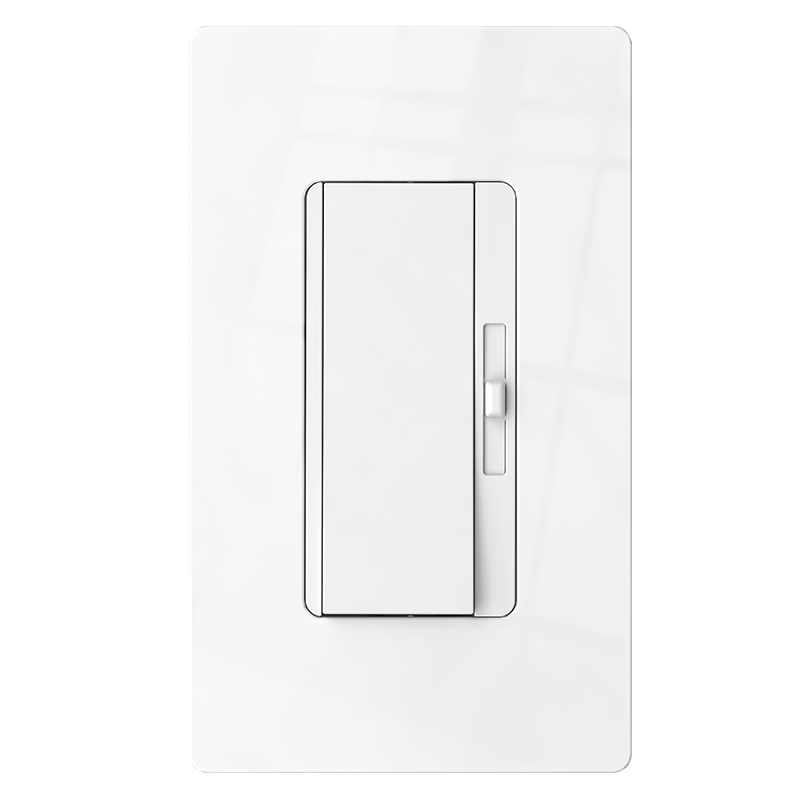

Model DM2010S
0–10V Slide Dimmer
Paddle on/off switching with slide control for compatible 0–10V LED drivers and fluorescent ballasts. Rated for 120/277V AC, 60Hz and 600VA maximum.
Key specifications
- Supply
- 120 / 277V AC · 60Hz
- Load
- 600VA maximum
- Control
- 0–10V
- Circuit
- Single-pole / 3-way
UL / cUL marking on model · file E550002
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Supply
- 120 / 277V AC · 60Hz
- Load
- 600VA maximum
- Control
- 0–10V
- Circuit
- Single-pole / 3-way
Complete model specification
Electrical & functional
7 details- Operating voltage
- 120 / 277V AC · 60Hz
- Current rating
- 5A at 120V AC · 2A at 277V AC
- Control method
- On/off slide dimmer · 0–10V
- Maximum load
- 600VA
- Control output
- 0–10V DC analog control — compatible driver required
- Circuit configuration
- Single-pole / 3-way
- Operating temperature
- −20°C to 40°C
Installation & dimensions
5 details- Device width
- 1.73 in (44 mm)
- Device height
- 4.14 in (105 mm)
- Overall depth
- 1.14 in (28.8 mm)
- Wall-plate face
- 2.75 × 4.53 in (70 × 115 mm)
- Recessed depth
- 21.5 mm
Compliance & application
4 details- Model
- DM2010S
- Source model designation
- DM2010S
- Published certification
- UL / cUL marking on model
- Certification file
- E550002
Product details
Lighting control, matched to the load.
Model DM2010S. A closer look at the product and the details that distinguish this configuration.
Supply: 120 / 277V AC · 60Hz
Load: 600VA maximum
Control: 0–10V
Circuit: Single-pole / 3-way
Application review
Choose the right dimming method.
Load review
Check the separate LED, CFL and incandescent limits where specified. Do not use one load rating for every lamp type.
Circuit planning

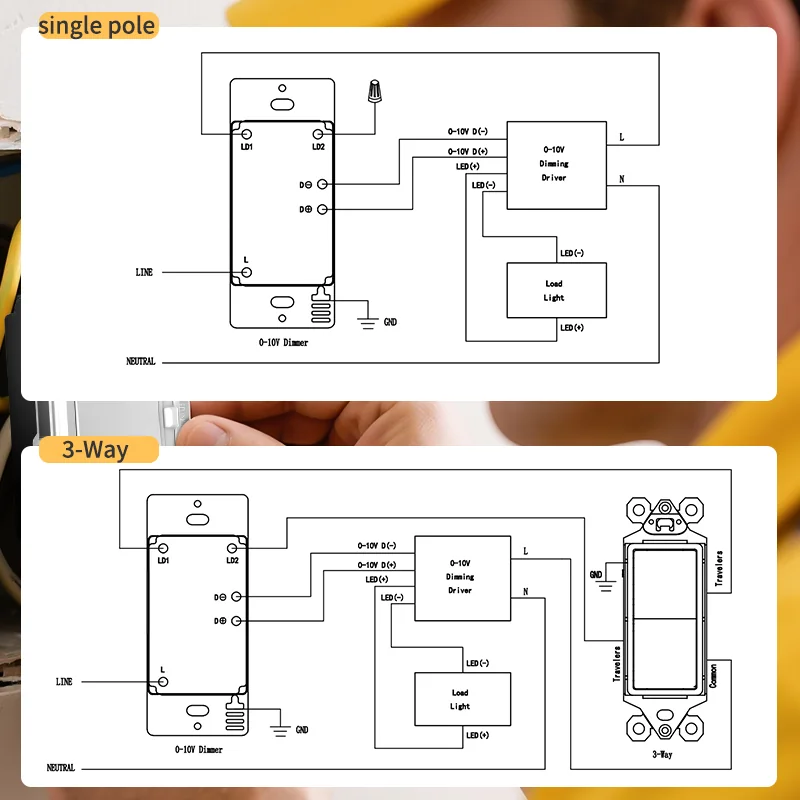

Confirm the supply, wiring configuration and multi-location requirements with the installer.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm DM2010S, its finish and any included wall plate on the quotation.

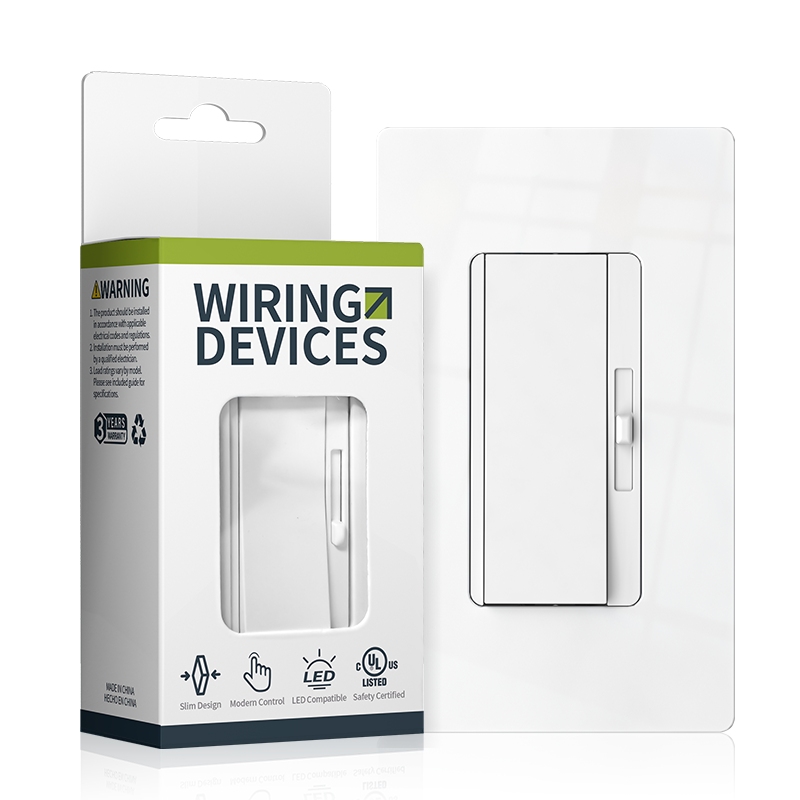

- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Model reference

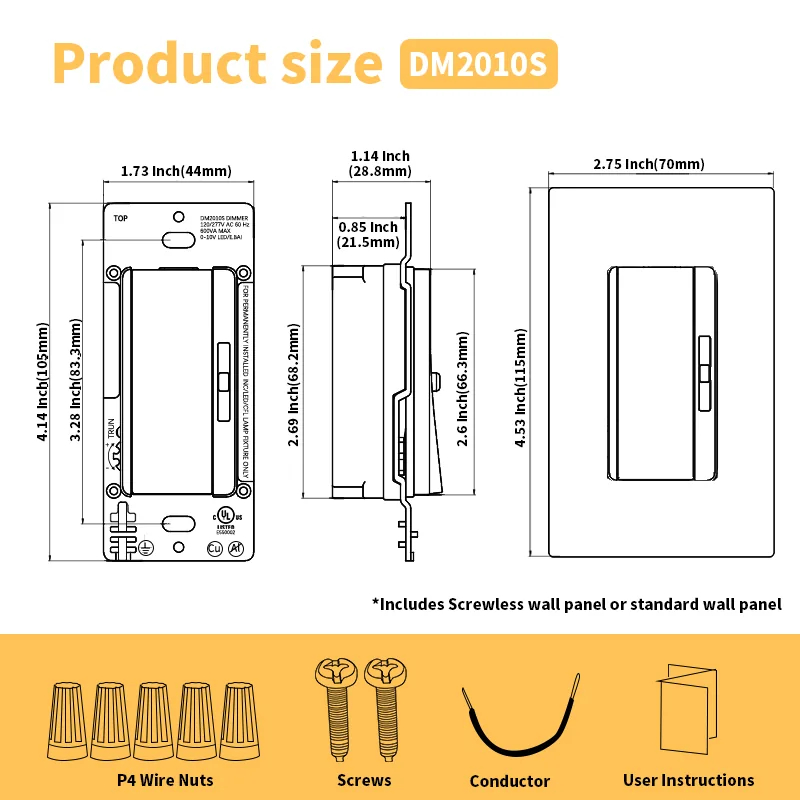

Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Open full drawing
Open full drawing Source documentation
Details your team can review.
Supplier-published reference: UL / cUL marking on model · file E550002
No matching certificate PDF for DM2010S is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
