Model GL20

20A Blank Face GFCI Module

Name: GL20 20A Blank Face GFCI Module
Brand: FAHINT
SKU: GL20

20A, 125V blank-face self-test GFCI with back and side wiring and a self-grounding clip.

Available finishes

Key specifications

Rating: 20A, 125V
Configuration: Blank face
Variant: Blank face
Application: Residential & Commercial Grade

Model-specific certification documentation review required

Request a quote Technical details

Model data

Technical specifications.

Key values first, with the complete specification grouped below for faster review.

Rating: 20A, 125V
Configuration: Blank Face (Dead Face)
Trip level: 4–6 mA · <25 ms
Wiring: Side wire & back wire
Certification: Documentation review required

Complete model specification

Electrical performance

5 details

Amperage: 20A
Rated voltage: 125V AC
Working voltage: 102–132V AC
Trip level: 4–6 mA · <25 ms
Operating temperature: -35°C to 66°C (-30°F to 150°F)

Installation & configuration

7 details

NEMA configuration: Blank Face (Dead Face)
Wiring method: Side wire & back wire
Wire gauge: #12–#14 AWG copper wire
Pole & wire: 2-pole, 3-wire
Grounding: Self-grounding
Face dimensions: 4.53 in (115 mm) × 2.75 in (70 mm)
Body depth: 1.56 in (39.7 mm)

Compliance & application

7 details

Item code: GL20
Certification: Documentation review required
Standard: UL 943 / UL 498 / UL 1998
Application grade: Residential & Commercial Grade
Tamper-resistant: No
Weather-resistant: No
Usage: Indoor only

Materials & construction

6 details

Face & body: Thermoplastic
Current-carrying components: 0.8 mm high-precision phosphor bronze
Mounting yoke: 1.2 mm galvanized steel
Contacts: Silver-alloy contacts
Circuit protection: Coated PCB with MCU protection for critical components
Flammability: UL 94 V-1

Quality & durability

8 details

Initial self-test: Within 3 seconds after power-up
Full-load temperature rise: Below 20K / 33K
Terminal screw torque: Over 2 N·m
Indicator system: Green / red dual LED · stated service life >5 years
Factory inspection: 100% automated inspection · stated qualified rate 99.99%
Trip response: 4–6 mA · <25 ms
Patent protection: China & USA
Warranty: 3 years

Product engineering

Protection,clearly documented.

20A, 125V blank-face self-test GFCI with back and side wiring and a self-grounding clip.

Product features

04 documented details

Blank face
Self-test every 15 min
Reverse-wiring lockout
Dual-colour status indicator for power and protection state

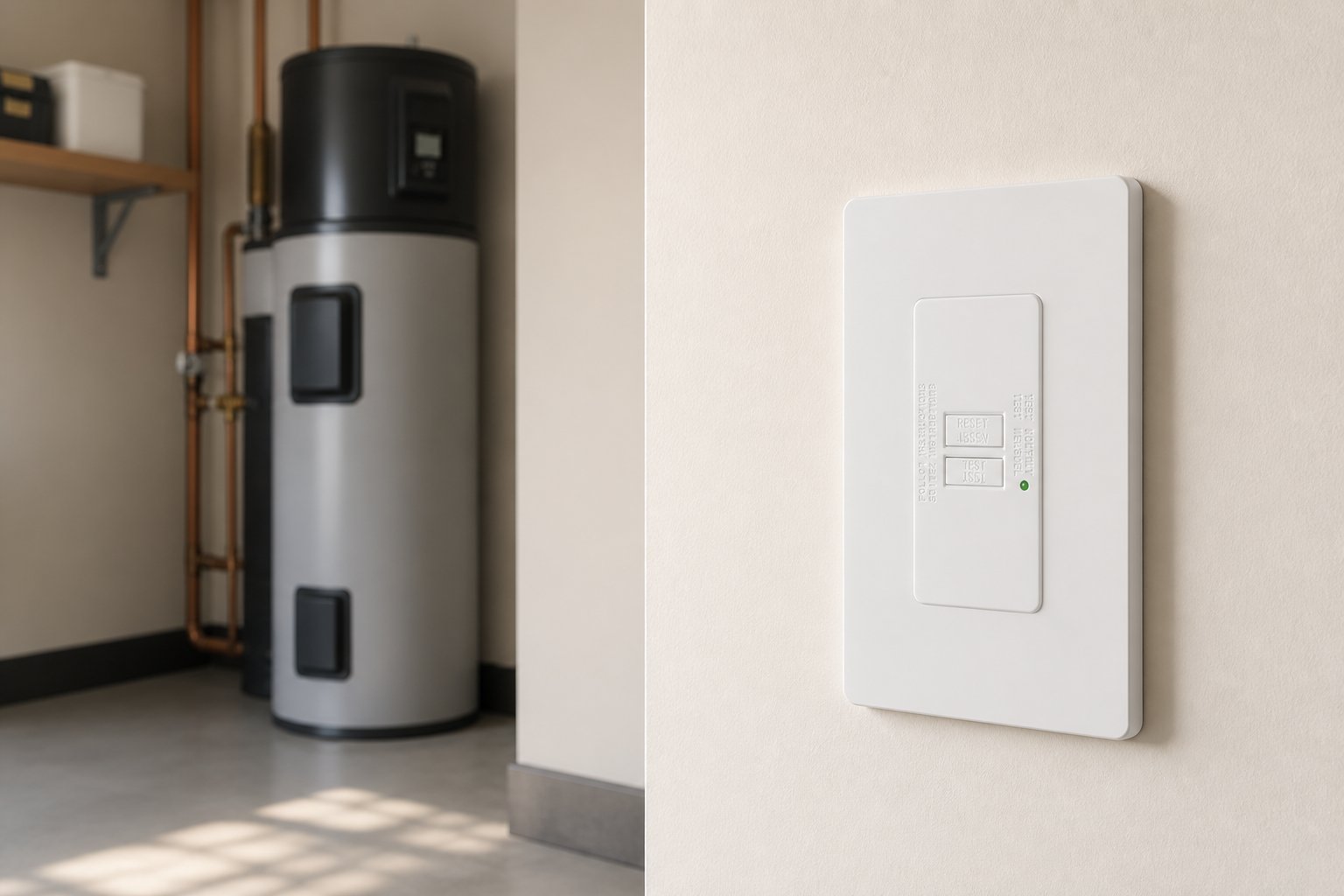

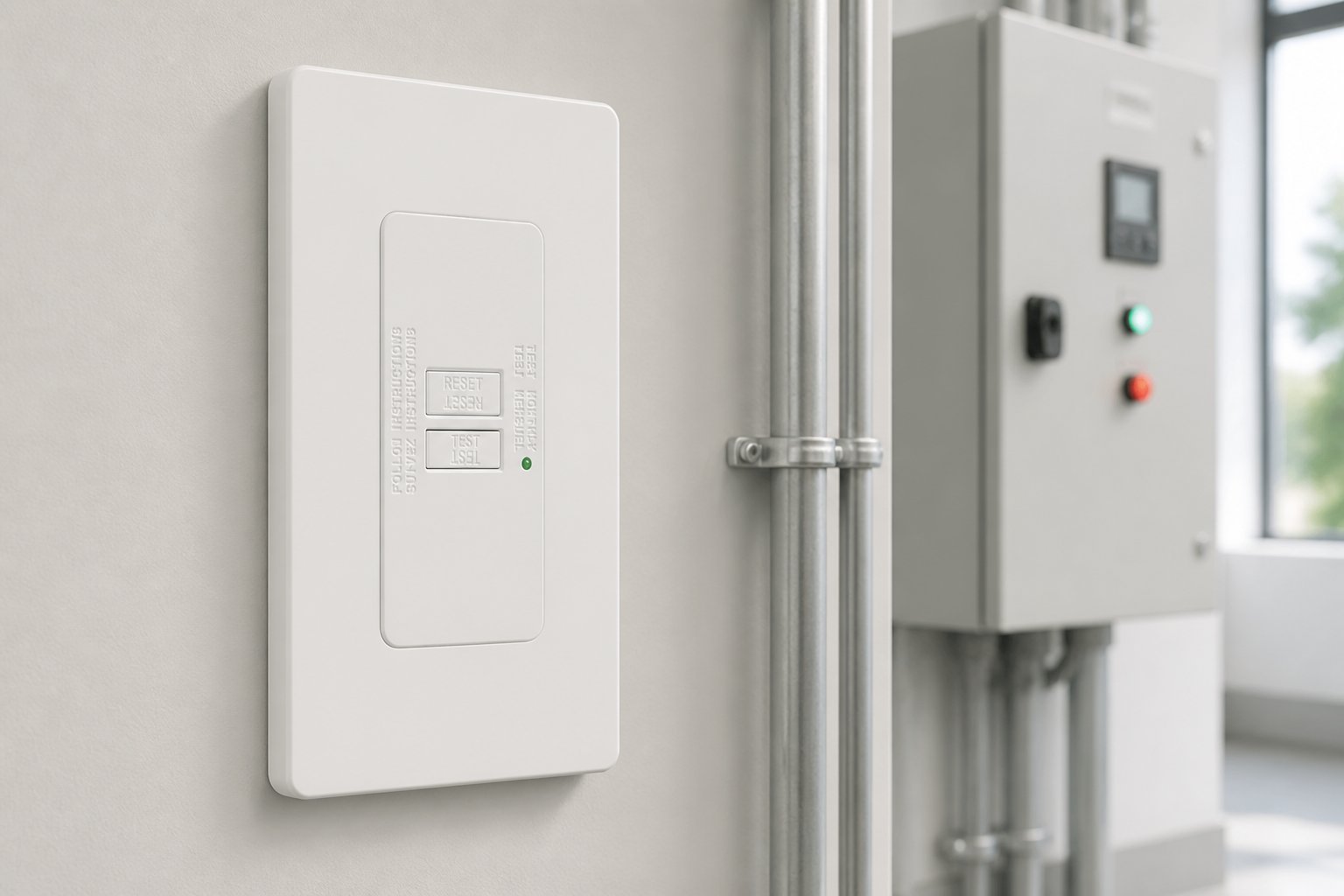

Application review

Designed for the environments in the specification.

Residential & Commercial Grade

20A, 125V blank-face self-test GFCI with back and side wiring and a self-grounding clip.

Confirm the intended location, enclosure and applicable code requirements before specifying a model.

Review your application

Program configuration

Configure the product around your program.

Align the visible finish and approved program materials around a reviewed product specification.

Retail packaging references

7 standard presentations

GL20 White standard retail packaging — White

GL20 Black standard retail packaging — Black

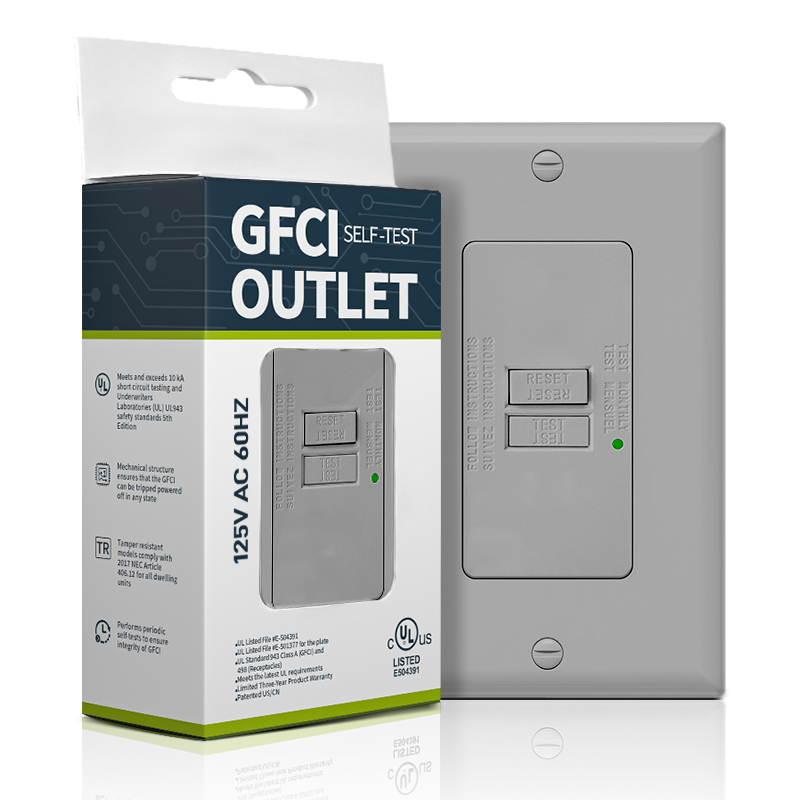

GL20 Grey standard retail packaging — Grey

GL20 Graphite standard retail packaging — Graphite

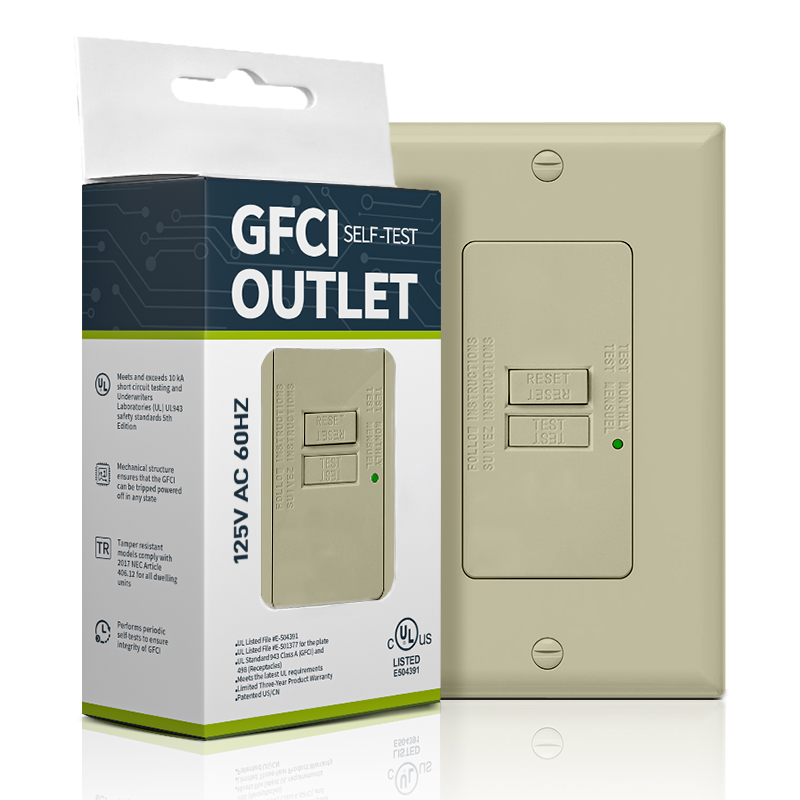

GL20 Ivory standard retail packaging — Ivory

GL20 Light Almond standard retail packaging — Light Almond

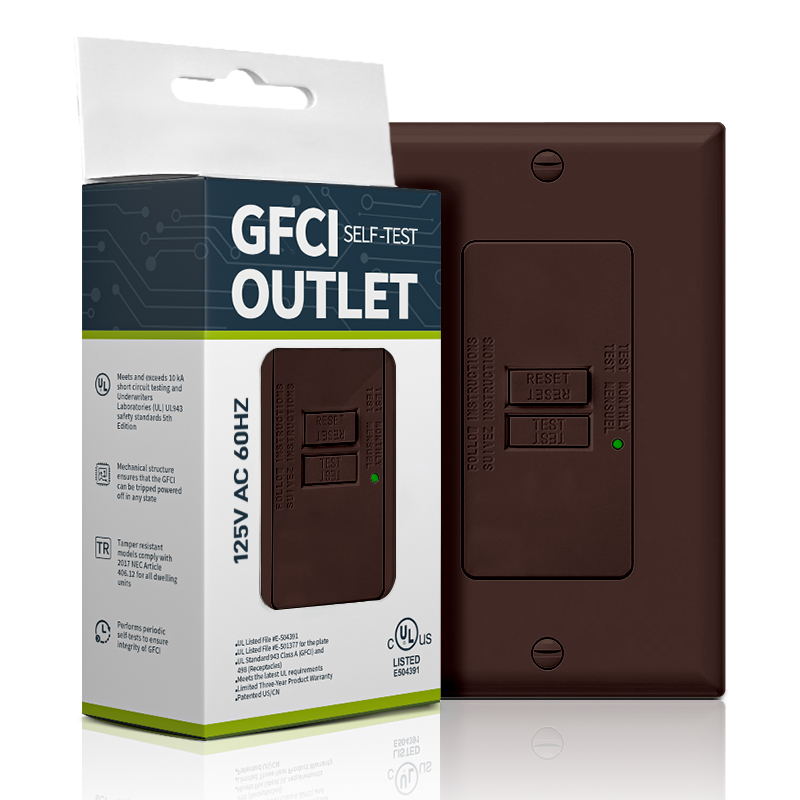

GL20 Brown standard retail packaging — Brown

Wall plate options

Coordinate the plate style with the selected finish.

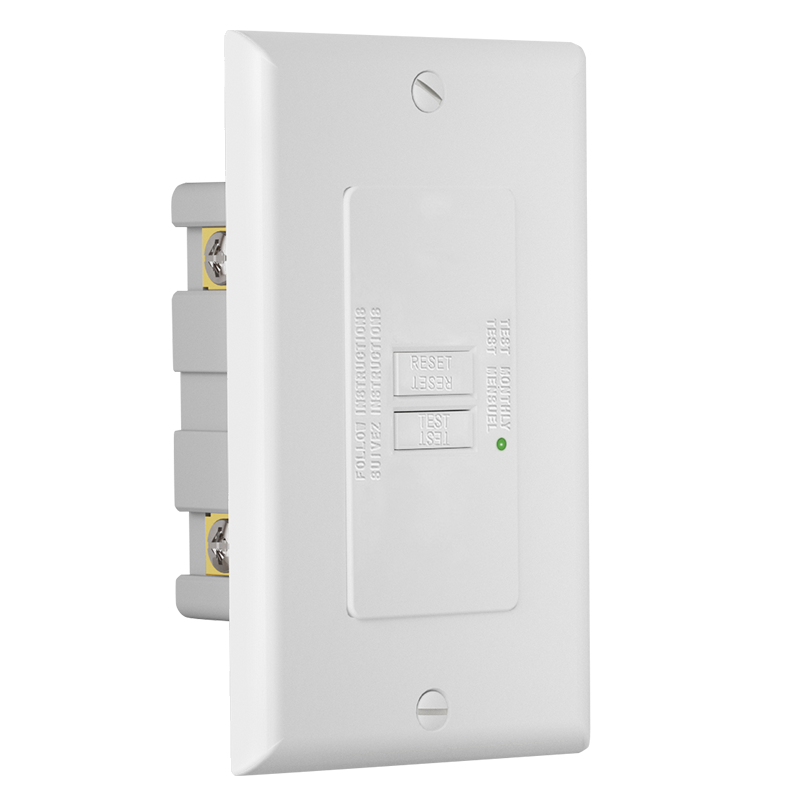

GL20 with standard screw wall plate and retail box — **Standard screw plate**Visible fastening · classic presentation

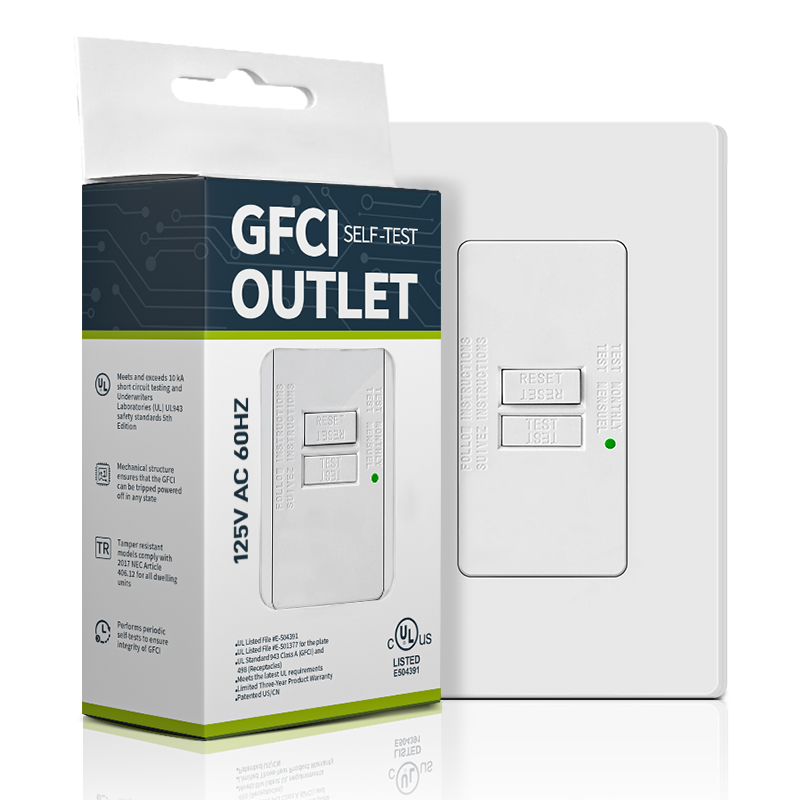

GL20 with screwless wall plate and retail box — **Screwless plate**Clean face · concealed fastening

Packaging programs

3 approved configurations

Program	Retail presentation	Wall plate	Inner box	Carton
Package A	Color retail box	Included	10 pcs	50 pcs
Package B	Blank white box	Included	10 pcs	50 pcs
Package C	Color retail box	Not included	10 pcs	100 pcs

Installation reference

Wiring and dimensions.

A clear field reference for terminal identification, installation sequence and the three dimensions that matter before specification.

Connection guide

Wire by terminal, not by position.

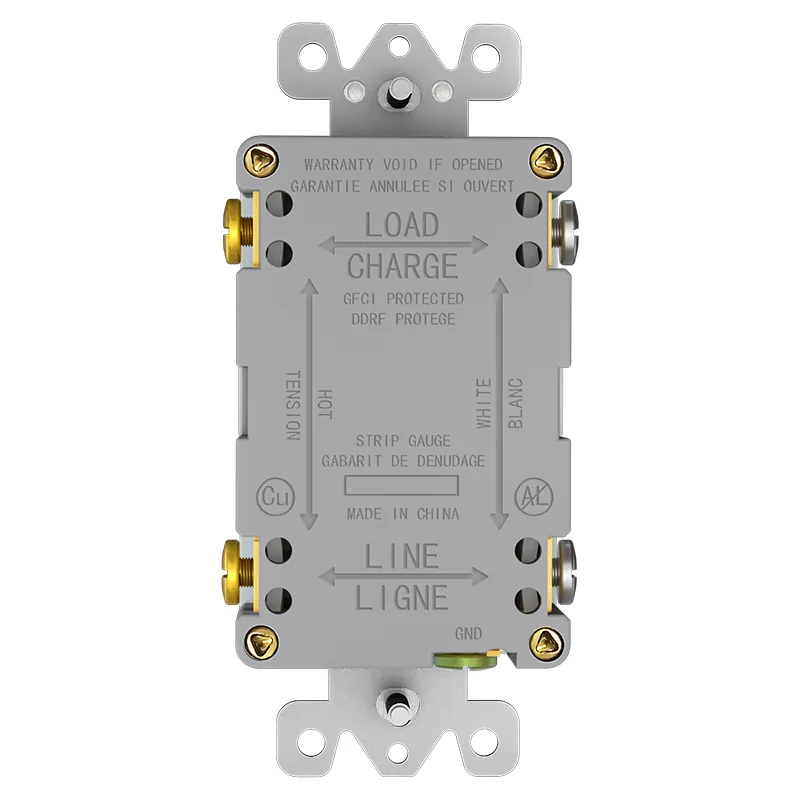

GL20 rear terminal view — Rear terminal view · confirm molded LINE and LOAD markings on the device.

Neutral White conductor: Silver screw
Hot Black conductor: Brass screw
Ground Copper or green conductor: Green screw

Use the device’s LINE and LOAD markings to identify the corresponding terminals before inserting any conductor.

01IdentifyConfirm supply, load and ground conductors.
02SecureInsert wires through the terminal holes and tighten clockwise.
03VerifyPress RESET and confirm the green LED indicator turns on.

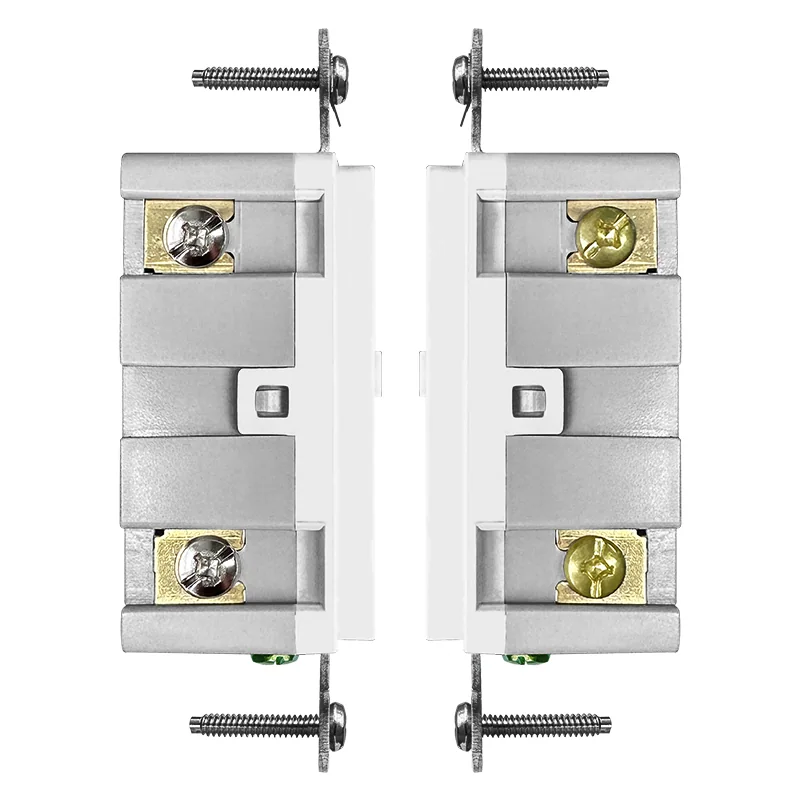

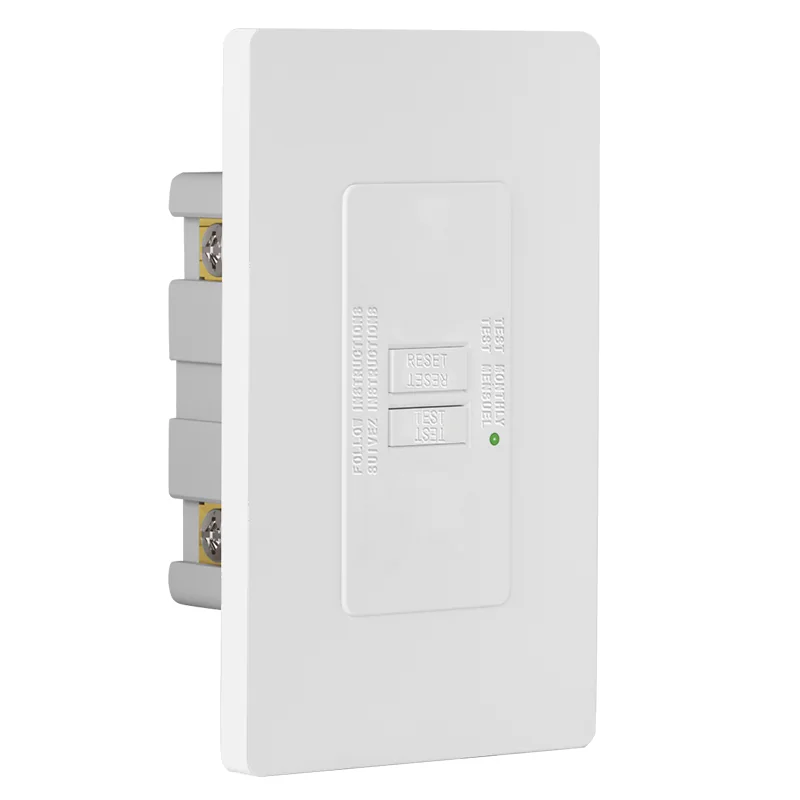

Dimensional profile

Three views. Three critical dimensions.

Overall height: 4.53 in (115 mm)
Plate width: 2.75 in (70 mm)
Body depth: 1.56 in (39.7 mm)

Reference dimensions only. Verify enclosure depth and applicable installation requirements before release.

Model documentation

Documentation review for GL20.

Certification status requires model-specific documentation review before specification or purchase.

Request a documentation review Browse product resources

Manufacturing evidence.

Factory photographs from FAHINT. Test requirements and documentation are confirmed for the selected model.

FAHINT staff working at wiring-device assembly benches — Component assembly

FAHINT staff operating GFCI functional testing stations — GFCI functional testing

FAHINT laboratory with test benches and a temperature and humidity chamber — Laboratory verification

Project inquiry

Request a quotation for GL20.

Share the intended application, target finish and documentation needs so the team can review the product brief.

Use the full contact page

Before you order GL20

Configuration. Confirm the face rating, TR / WR or blank-face configuration, and required model documents.
Order breakdown. List quantities by finish, wallplate and packaging option, with the destination and requested timing.
Documentation. GL20 documentation remains under review. Request the exact model listing record before specifying it.

Read the GFCI sourcing checklist

Sample arrangements, minimum quantities and lead times are confirmed in your quotation. Approve the sample and any authorized artwork before the order.
