Circuit configuration
Select single-pole or multi-location control from the model specification.
Model T15
15A Single-Pole Toggle Switch
15A 125V AC 60Hz. Single pole control with push-in quick wire(#14 awg only) & side wire. UL/CUL is the certification identified on the original model page.
Key specifications
- Rating
- 15A 125V AC 60Hz
- Circuit
- Single pole

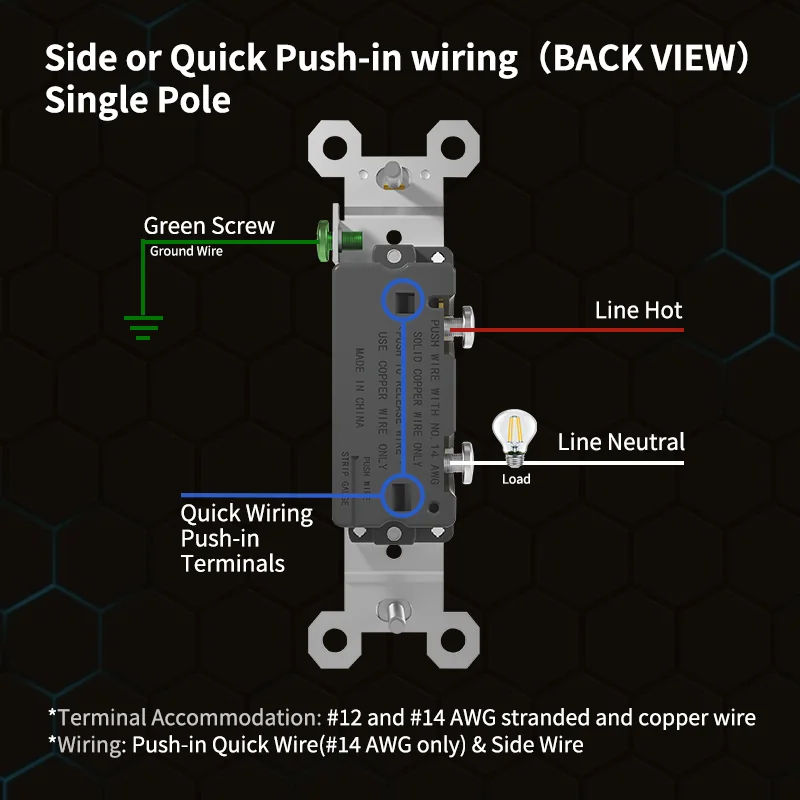

- Wiring
- Push-in Quick Wire(#14 AWG only) & Side Wire
- Published certification
- UL/CUL
UL/CUL · file E528137
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Rating
- 15A 125V AC 60Hz
- Circuit
- Single pole
- Wiring
- Push-in Quick Wire(#14 AWG only) & Side Wire
- Published certification
- UL/CUL
Complete model specification
Electrical & functional
6 details- Feature
- Toggle Switch
- Terminal accommodation
- #12 and #14 AWG stranded and copper wire
- Device rating
- 15A 125V AC 60Hz
- Mounting type
- Wall Mount
- Terminal identification
- Terminal identification in accordance with UL20
- Flammability
- UL20 Minimum Rating
Installation & dimensions
3 details- Wiring method
- Push-in Quick Wire(#14 AWG only) & Side Wire
- Pole & wire
- Single Pole, 3 Wire
- Grounding
- Self-Grounding with Extend Cooper Clip
Compliance & application
6 details- Model
- T15
- Source model designation
- T15
- Published certification
- UL/CUL
- Certification file
- E528137
- Application grade
- Residential & Commercial
- Warranty
- 3 years limited
Materials & construction
6 details- Front Cover/Body
- High-Impact PC-Thermoplastic
- Operation Temperature
- -35 °C~ 70 °C
- Environmental
- Flammability UL-94 V2 Rating
- Yoke
- Zinc-Plated Steel 1.2mm Thick
- Clamps
- Phosphor Bronze 0.8mm Thick
- Terminal Screws
- Plated Steel
Product details
Everyday control, clearly specified.
Model T15. A closer look at the product and the details that distinguish this configuration.
Rating: 15A 125V AC 60Hz
Circuit: Single pole
Wiring: Push-in Quick Wire(#14 AWG only) & Side Wire
Published certification: UL/CUL
Warranty: 3 years limited
Application review
Switching that fits the room and circuit.
Load compatibility
Review the published voltage and load limits before specifying the switch.
Coordinated presentation
Match the paddle or toggle opening with the correct wall plate.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm T15, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.

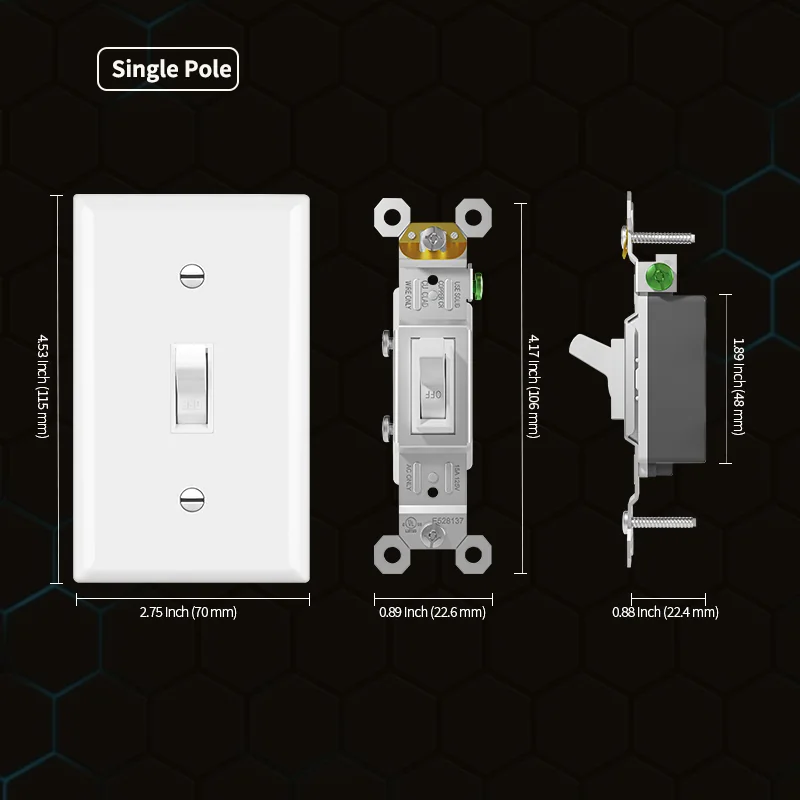

Model reference
Dimensions & installation reference.
Open the supplied reference for a closer look and check its stated scope. Follow the approved installation instructions for the exact model.
Open original certificate PDF Source documentation
Details your team can review.
Supplier-published reference: UL/CUL · file E528137
T15 is named in the supplied October 18, 2024 addendum (report E528137-20241016). Confirm current coverage for the ordered configuration.
Model addenda: PDF pages 2, 4. This supplied document is not a live certification-status check.
