Model F4P
4-Port USB-A Wall Charger
Four USB-A charging ports in a decorator-format wall device, with a published combined output of 4.2A at 5V DC.
Key specifications
- Input
- 125V 60Hz
- Charging
- 5V DC · 4.2A · 21W
- Interfaces
- 4 × USB-A
- Variant
- USB charger
UL/CUL · file E498095
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Input
- 125V 60Hz
- Charging
- 5V DC · 4.2A · 21W
- Interfaces
- 4 × USB-A
- Variant
- USB charger
Complete model specification
Electrical & functional
4 details- Input rating
- 125V 60Hz
- Combined USB output
- 5V DC · 4.2A · 21W
- 4 x USB A
- 5V DC 2.4A Max
- Operating temperature
- -35°C to 66°C (-30°F to 150°F)
Installation & dimensions
5 details- Wiring method
- Side Wire & Back Wire
- Wire gauge
- #12~#14 AWG Copper Wire
- Pole & wire
- 2-Pole, 3-Wire
- Grounding
- Self-Grounding

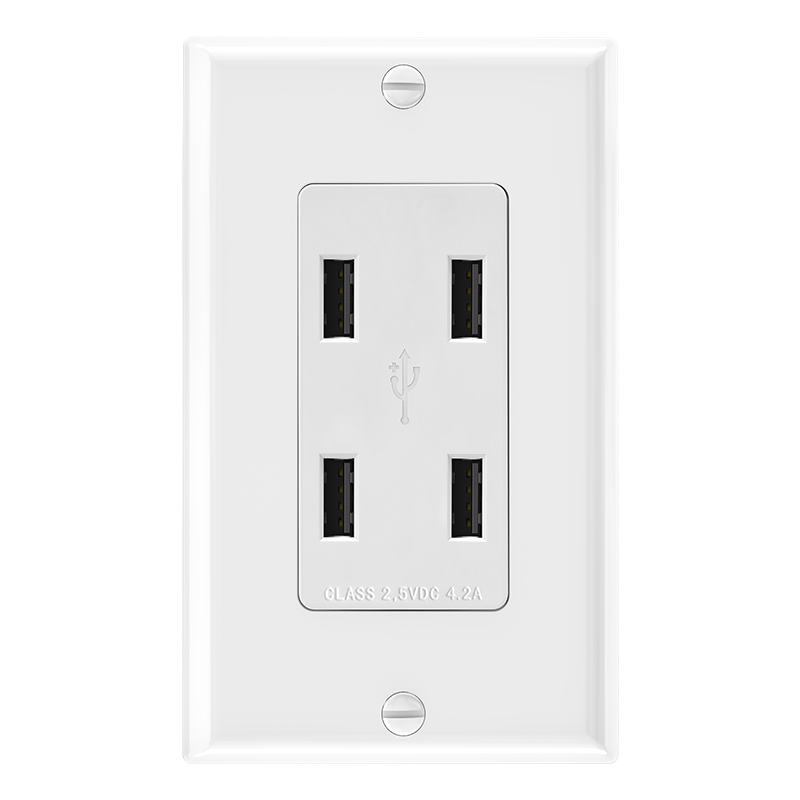

- Wall plate

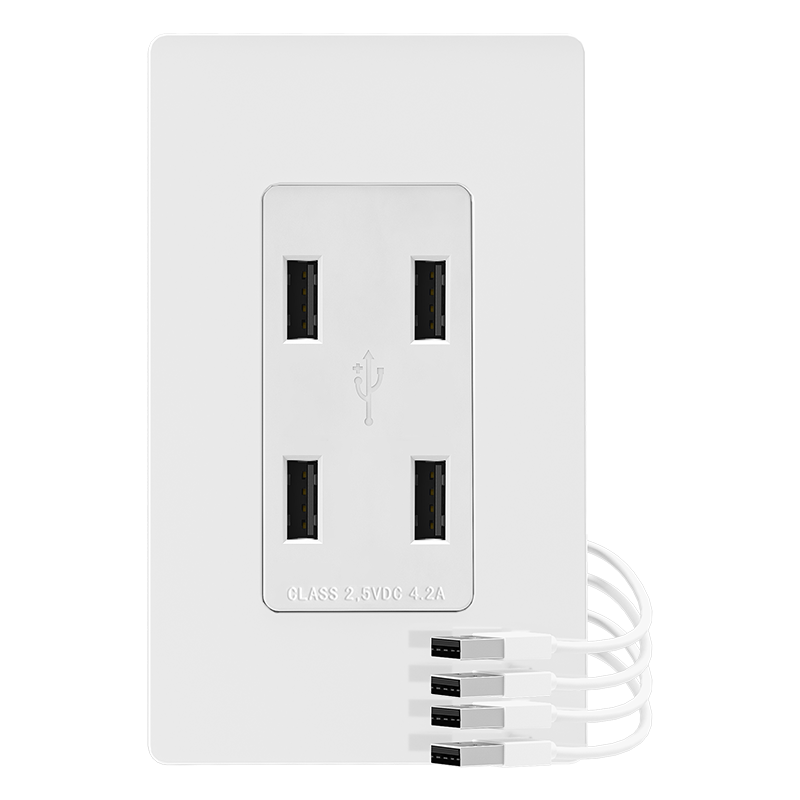

- Standard / Screwless Wallplate Optional
Compliance & application
8 details- Model
- F4P
- Source model designation
- F4P
- Published certification
- UL/CUL
- Standard
- UL498/CSA C22.2 No. 42, 7th Ed
- Application grade
- Residential & Commercial Grade
- Tamper-resistant
- No
- Weather-resistant
- No
- Warranty
- 3 years
Materials & construction
6 details- Material
- Face, Thermoplastic; Body, Thermoplastic
- Construction detail 2
- 0.8mm thick high-precision phosphorus bronze
- Construction detail 3
- 1.2mm thick galvanized steel bracket
- Construction detail 4
- Silver alloy contacts
- Construction detail 5
- Coated PC board with Smart chip MCU to protect critical components from moisture
- Environmental
- Flammability UL-94 V1 Rating.
Product details
Charging, built into the wall.
Model F4P. A closer look at the product and the details that distinguish this configuration.
Input: 125V 60Hz
Charging: 5V DC · 4.2A · 21W
Interfaces: 4 × USB-A
Variant: USB charger

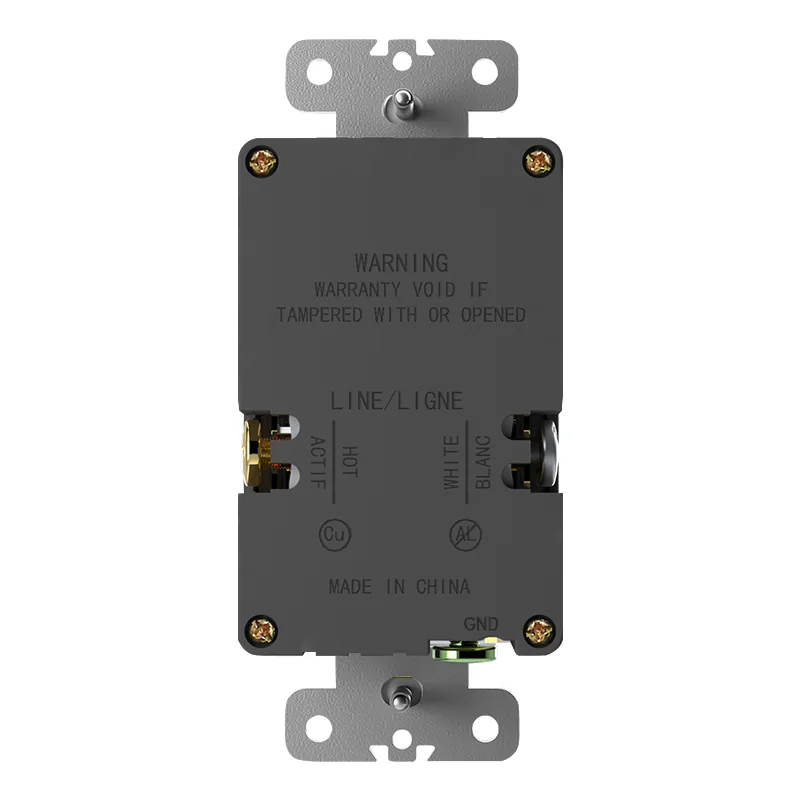

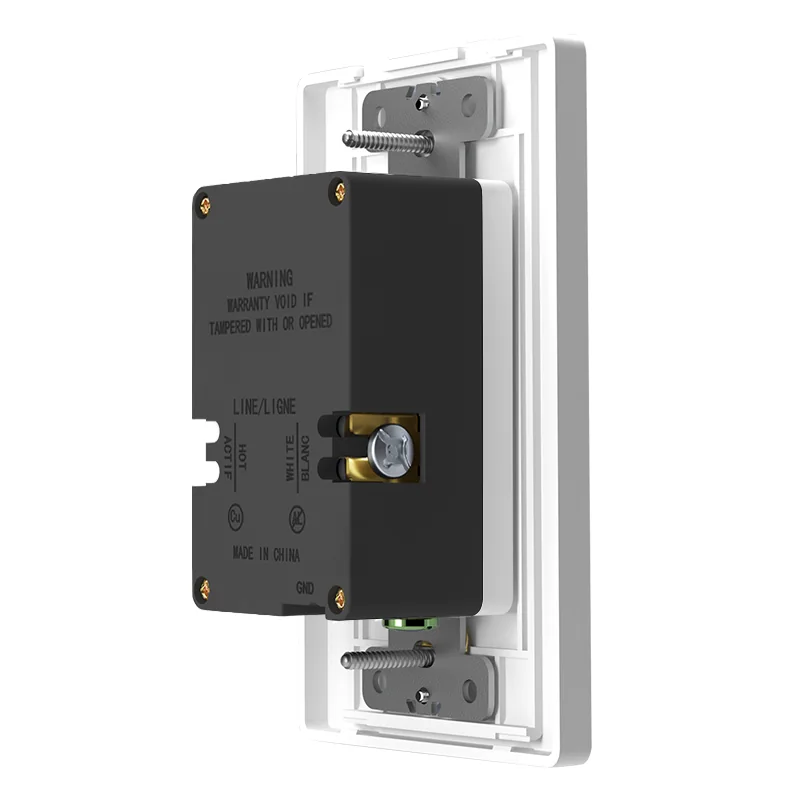

Wiring: Side Wire & Back Wire
Warranty: 3 years
Application review
Power and charging, in the same place.
Workplaces & shared spaces
Select the port layout and charging profile to suit the devices people use.
Before installation
Check the receptacle rating, available wall-box space and local installation requirements.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm F4P, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.

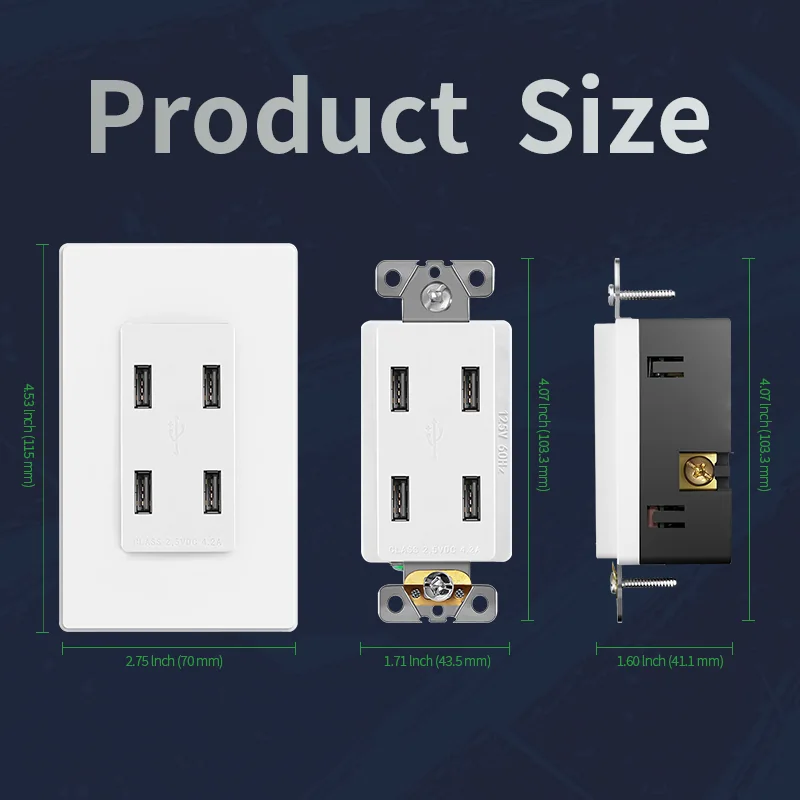

Dimensional reference
Dimensions,
clearly drawn.
Three clear views of F4P. Key measurements from the original model drawing, with room to read every detail.
F4PDimensions in millimeters · mm
Wall plate
Reference plate · height × width
Front view
Device height includes the mounting tabs.
Side profile
Overall device height and depth.
Source documentation
Details your team can review.
Supplier-published reference: UL/CUL · file E498095
No matching certificate PDF for F4P is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
