Homes & hospitality
Keep everyday device charging close to desks, bedsides and shared living spaces.

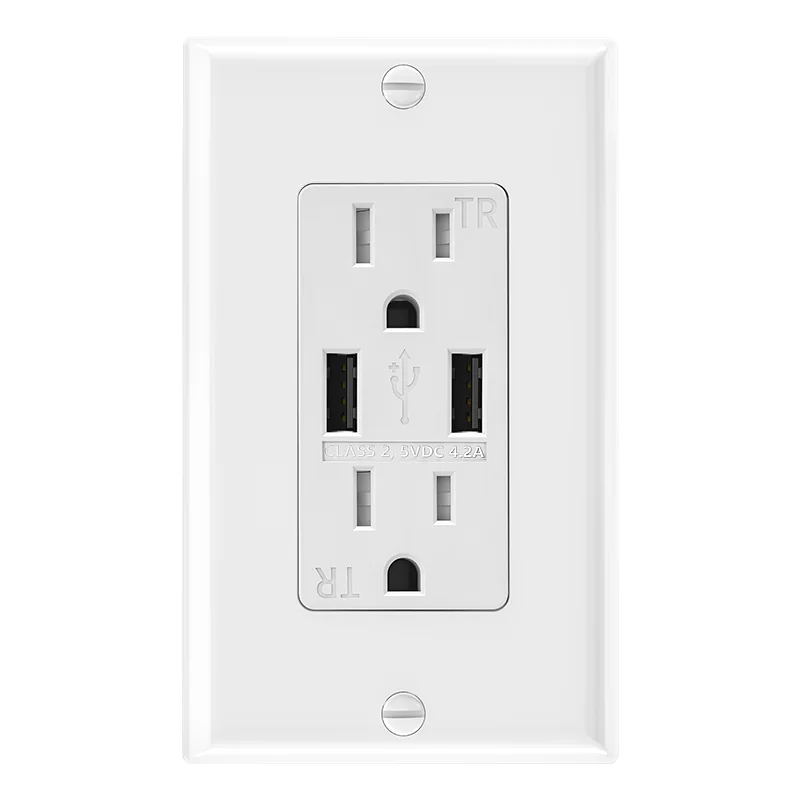

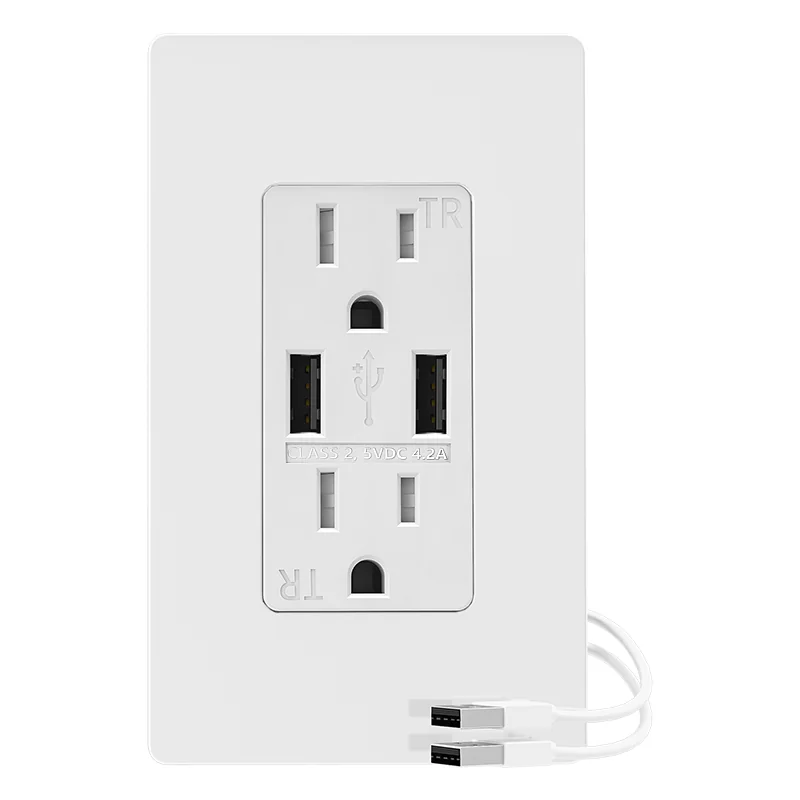

Model FTR15-4200
15A 2 × USB-A Outlet · 4.2A
15A, 125V receptacle with 2 × USB-A charging ports. Combined USB output is 5V DC, 4.2A (21W), shared across both ports.
Key specifications
- Receptacle
- 15A · NEMA 5-15R
- Combined USB output
- 5V DC · 4.2A · 21W
- Interfaces
- 2 × USB-A
- Charging
- Conventional · non-PD
Model-specific documentation available on request
Model data
Technical specifications.
Key values first, with the complete specification grouped below for faster review.
- Receptacle
- 15A · NEMA 5-15R
- Combined USB output
- 5V DC · 4.2A · 21W
- Interfaces
- 2 × USB-A
- Charging
- Conventional · non-PD
Complete model specification
Electrical & functional
6 details- Receptacle rating
- 15A, 125V · NEMA 5-15R
- Combined USB output
- 5V DC · 4.2A · 21W
- USB interfaces
- 2 × USB-A
- Charging protocols
- BC1.2 · Apple / Samsung
- Quick charging
- No
- Mounting centers
- 83.5 mm
Installation & dimensions
5 details- Pole & wire
- 2-Pole, 3-Wire
- Device width
- 43.5 mm
- Body height
- 69 mm
- Overall depth
- 44.7 mm
- Recessed depth
- 37.5 mm
Compliance & application
3 details- Model
- FTR15-4200
- Source model designation
- FTR15-4200
- Tamper-resistant
- Yes — marked on the model face
Product details
Charging, built into the wall.
Model FTR15-4200. A closer look at the product and the details that distinguish this configuration.
Receptacle: 15A · NEMA 5-15R
Combined USB output: 5V DC · 4.2A · 21W
Interfaces: 2 × USB-A
Charging: Conventional · non-PD
Application review
Power and charging, in the same place.
Workplaces & shared spaces
Select the port layout and charging profile to suit the devices people use.
Before installation
Check the receptacle rating, available wall-box space and local installation requirements.
Program configuration
Product, finish and packaging.
Coordinate the exact model, visible finish and customer-branded outer packaging in one approved sample.
- Exact configuration
- Confirm FTR15-4200, its finish and any included wall plate on the quotation.
- Custom outer packaging
- Customer-branded boxes can be reviewed with your artwork and brand authorization.
- Packing quantities
- Inner-box and carton quantities are confirmed for the selected model and packaging format.
Dimensional reference
Dimensions,
clearly drawn.
Shared non-65W dimensional reference supplied in the 4200mA product folder.
FTR15-4200Dimensions in millimeters · mm
Front view
Face: 33.1 × 66.5 mm · body height shown.
Mounting centers
Hole spacing is measured center to center.
Side profile
Recessed body depth above · total depth below.
Source documentation
Details your team can review.
No matching certificate PDF for FTR15-4200 is currently published in this library. Request the exact-model document; a file number or family reference alone does not establish coverage.
